colour

colour — colour operators

Stability Level

Stable, unless otherwise indicated

Functions

gboolean vips_colourspace_issupported ()
int vips_colourspace ()
int vips_LabQ2sRGB ()
int vips_rad2float ()
int vips_float2rad ()
int vips_LabS2LabQ ()
int vips_LabQ2LabS ()
int vips_LabQ2Lab ()
int vips_Lab2LabQ ()
int vips_LCh2Lab ()
int vips_Lab2LCh ()
int vips_Yxy2Lab ()
int vips_CMC2XYZ ()
int vips_Lab2XYZ ()
int vips_XYZ2Lab ()
int vips_XYZ2scRGB ()
int vips_scRGB2sRGB ()
int vips_scRGB2BW ()
int vips_sRGB2scRGB ()
int vips_scRGB2XYZ ()
int vips_HSV2sRGB ()
int vips_sRGB2HSV ()
int vips_LCh2CMC ()
int vips_CMC2LCh ()
int vips_XYZ2Yxy ()
int vips_Yxy2XYZ ()
int vips_LabS2Lab ()
int vips_Lab2LabS ()
int vips_CMYK2XYZ ()
int vips_XYZ2CMYK ()
int vips_profile_load ()
int vips_icc_present ()
int vips_icc_transform ()
int vips_icc_import ()
int vips_icc_export ()
int vips_icc_ac2rc ()
gboolean vips_icc_is_compatible_profile ()
int vips_dE76 ()
int vips_dE00 ()
int vips_dECMC ()
void vips_col_Lab2XYZ ()
void vips_col_XYZ2Lab ()
double vips_col_ab2h ()
void vips_col_ab2Ch ()
void vips_col_Ch2ab ()
float vips_col_L2Lcmc ()
float vips_col_C2Ccmc ()
float vips_col_Ch2hcmc ()
void vips_col_make_tables_CMC ()
float vips_col_Lcmc2L ()
float vips_col_Ccmc2C ()
float vips_col_Chcmc2h ()
int vips_col_sRGB2scRGB_8 ()
int vips_col_sRGB2scRGB_16 ()
int vips_col_sRGB2scRGB_8_noclip ()
int vips_col_sRGB2scRGB_16_noclip ()
int vips_col_scRGB2XYZ ()
int vips_col_XYZ2scRGB ()
int vips_col_scRGB2sRGB_8 ()
int vips_col_scRGB2sRGB_16 ()
int vips_col_scRGB2BW_16 ()
int vips_col_scRGB2BW_8 ()
float vips_pythagoras ()
float vips_col_dE00 ()

Types and Values

#define VIPS_D93_X0
#define VIPS_D93_Y0
#define VIPS_D93_Z0
#define VIPS_D75_X0
#define VIPS_D75_Y0
#define VIPS_D75_Z0
#define VIPS_D65_X0
#define VIPS_D65_Y0
#define VIPS_D65_Z0
#define VIPS_D55_X0
#define VIPS_D55_Y0
#define VIPS_D55_Z0
#define VIPS_D50_X0
#define VIPS_D50_Y0
#define VIPS_D50_Z0
#define VIPS_A_X0
#define VIPS_A_Y0
#define VIPS_A_Z0
#define VIPS_B_X0
#define VIPS_B_Y0
#define VIPS_B_Z0
#define VIPS_C_X0
#define VIPS_C_Y0
#define VIPS_C_Z0
#define VIPS_E_X0
#define VIPS_E_Y0
#define VIPS_E_Z0
#define VIPS_D3250_X0
#define VIPS_D3250_Y0
#define VIPS_D3250_Z0
enum VipsIntent
enum VipsPCS

Includes

#include <vips/vips.h>

Description

These operators let you transform coordinates and images between colour spaces, calculate colour differences, and move to and from device spaces.

All operations process colour from the first few bands and pass other bands through unaltered. This means you can operate on images with alpha channels safely. If you move to or from 16-bit RGB, any alpha channels are rescaled for you.

Radiance images have four 8-bits bands and store 8 bits of R, G and B and another 8 bits of exponent, common to all channels. They are widely used in the HDR imaging community.

The colour functions can be divided into three main groups. First, functions to transform images between the different colour spaces supported by VIPS: VIPS_INTERPRETATION_sRGB, VIPS_INTERPRETATION_scRGB, VIPS_INTERPRETATION_B_W, VIPS_INTERPRETATION_XYZ, VIPS_INTERPRETATION_YXY, VIPS_INTERPRETATION_LAB, VIPS_INTERPRETATION_LCH, and VIPS_INTERPRETATION_CMC.

There are also a set of minor colourspaces which are one of the above in a slightly different format: VIPS_INTERPRETATION_LAB, VIPS_INTERPRETATION_LABQ, VIPS_INTERPRETATION_LABS, VIPS_INTERPRETATION_LCH, VIPS_INTERPRETATION_RGB16, and VIPS_INTERPRETATION_GREY16.

Use vips_colourspace() to move an image to a target colourspace using the best sequence of colour transform operations.

Secondly, there are a set of operations for calculating colour difference metrics. Finally, VIPS wraps LittleCMS and uses it to provide a set of operations for reading and writing images with ICC profiles.

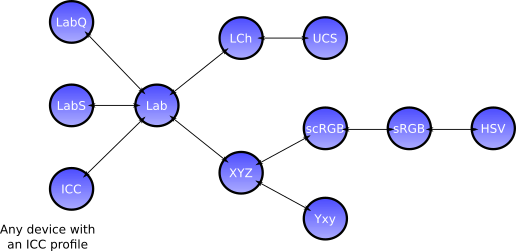

This figure shows how the VIPS colour spaces interconvert:

The colour spaces supported by VIPS are:

  • VIPS_INTERPRETATION_LAB -- CIELAB '76 colourspace with a D65 white. This uses three floats for each band, and bands have the obvious range.

    There are two variants, VIPS_INTERPRETATION_LABQ and VIPS_INTERPRETATION_LABS, which use ints to store values. These are less precise, but can be quicker to store and process.

    VIPS_INTERPRETATION_LCH is the same, but with a*b* as polar coordinates. Hue is expressed in degrees.

  • VIPS_INTERPRETATION_XYZ -- CIE XYZ. This uses three floats. See VIPS_D75_X0 and friends for values for the ranges under various illuminants.

    VIPS_INTERPRETATION_YXY is the same, but with little x and y.

  • VIPS_INTERPRETATION_scRGB -- a linear colourspace with the sRGB primaries. This is useful if you need linear light and don't care much what the primaries are.

    Linearization is performed with the usual sRGB equations, see below.

  • VIPS_INTERPRETATION_sRGB -- the standard sRGB colourspace, see: wikipedia sRGB.

    This uses three 8-bit values for each of RGB.

    VIPS_INTERPRETATION_RGB16 is the same, but using three 16-bit values for RGB.

    VIPS_INTERPRETATION_HSV is sRGB, but in polar coordinates. VIPS_INTERPRETATION_LCH is much better, only use HSV if you have to.

  • VIPS_INTERPRETATION_B_W -- a monochrome image, roughly G from sRGB. The grey value is calculated in VIPS_INTERPRETATION_scRGB space with the usual 0.2, 0.7, 0.1 RGB ratios.

    VIPS_INTERPRETATION_GREY16 is the same, but using 16-bits.

  • VIPS_INTERPRETATION_CMC -- a colour space based on the CMC(1:1) colour difference measurement. This is a highly uniform colour space, much better than CIELAB for expressing small differences.

    The CMC colourspace is described in "Uniform Colour Space Based on the CMC(l:c) Colour-difference Formula", M R Luo and B Rigg, Journal of the Society of Dyers and Colourists, vol 102, 1986. Distances in this colourspace approximate, within 10% or so, differences in the CMC(l:c) colour difference formula.

    You can calculate metrics like CMC(2:1) by scaling the spaces before finding differences.

Functions

vips_colourspace_issupported ()

gboolean
vips_colourspace_issupported (const VipsImage *image);

Test if image is in a colourspace that vips_colourspace() can process.

[method]

Parameters


input image



Returns

TRUE if image is in a supported colourspace.


vips_colourspace ()

int
vips_colourspace (VipsImage *in,
                  VipsImage **out,
                  VipsInterpretation space,
                  ...);

Optional arguments:

  • source_space : input colour space

This operation looks at the interpretation field of in (or uses source_space , if set) and runs a set of colourspace conversion functions to move it to space .

For example, given an image tagged as VIPS_INTERPRETATION_YXY, running vips_colourspace() with space set to VIPS_INTERPRETATION_LAB will convert with vips_Yxy2XYZ() and vips_XYZ2Lab().

See also: vips_colourspace_issupported(), vips_image_guess_interpretation().

[method]

Parameters

in

input image



out

output image.

[out]

space

convert to this colour space



...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_LabQ2sRGB ()

int
vips_LabQ2sRGB (VipsImage *in,
                VipsImage **out,
                ...);

Unpack a LabQ (VIPS_CODING_LABQ) image to a three-band short image.

See also: vips_LabS2LabQ(), vips_LabQ2sRGB(), vips_rad2float().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_rad2float ()

int
vips_rad2float (VipsImage *in,
                VipsImage **out,
                ...);

Unpack a RAD (VIPS_CODING_RAD) image to a three-band float image.

See also: vips_float2rad(), vips_LabQ2LabS().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_float2rad ()

int
vips_float2rad (VipsImage *in,
                VipsImage **out,
                ...);

Convert a three-band float image to Radiance 32-bit packed format.

See also: vips_rad2float(), VIPS_CODING_RAD, vips_LabQ2Lab().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_LabS2LabQ ()

int
vips_LabS2LabQ (VipsImage *in,
                VipsImage **out,
                ...);

Convert a LabS three-band signed short image to LabQ

See also: vips_LabQ2LabS().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_LabQ2LabS ()

int
vips_LabQ2LabS (VipsImage *in,
                VipsImage **out,
                ...);

Unpack a LabQ (VIPS_CODING_LABQ) image to a three-band short image.

See also: vips_LabS2LabQ(), vips_LabQ2LabS(), vips_rad2float().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_LabQ2Lab ()

int
vips_LabQ2Lab (VipsImage *in,
               VipsImage **out,
               ...);

Unpack a LabQ (VIPS_CODING_LABQ) image to a three-band float image.

See also: vips_LabQ2Lab(), vips_LabQ2LabS(), vips_rad2float().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_Lab2LabQ ()

int
vips_Lab2LabQ (VipsImage *in,
               VipsImage **out,
               ...);

Convert a Lab three-band float image to LabQ (VIPS_CODING_LABQ).

See also: vips_LabQ2Lab().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_LCh2Lab ()

int
vips_LCh2Lab (VipsImage *in,
              VipsImage **out,
              ...);

Turn LCh to Lab.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_Lab2LCh ()

int
vips_Lab2LCh (VipsImage *in,
              VipsImage **out,
              ...);

Turn Lab to LCh.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_Yxy2Lab ()

int
vips_Yxy2Lab (VipsImage *in,
              VipsImage **out,
              ...);

vips_CMC2XYZ ()

int
vips_CMC2XYZ (VipsImage *in,
              VipsImage **out,
              ...);

vips_Lab2XYZ ()

int
vips_Lab2XYZ (VipsImage *in,
              VipsImage **out,
              ...);

Optional arguments:

Turn Lab to XYZ. The colour temperature defaults to D65, but can be specified with temp .

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_XYZ2Lab ()

int
vips_XYZ2Lab (VipsImage *in,
              VipsImage **out,
              ...);

Optional arguments:

Turn XYZ to Lab, optionally specifying the colour temperature. temp defaults to D65.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_XYZ2scRGB ()

int
vips_XYZ2scRGB (VipsImage *in,
                VipsImage **out,
                ...);

Turn XYZ to scRGB.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_scRGB2sRGB ()

int
vips_scRGB2sRGB (VipsImage *in,
                 VipsImage **out,
                 ...);

Optional arguments:

  • depth : depth of output image in bits

Convert an scRGB image to sRGB. Set depth to 16 to get 16-bit output.

If depth is 16, any extra channels after RGB are multiplied by 256.

See also: vips_LabS2LabQ(), vips_sRGB2scRGB(), vips_rad2float().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_scRGB2BW ()

int
vips_scRGB2BW (VipsImage *in,
               VipsImage **out,
               ...);

Optional arguments:

  • depth : depth of output image in bits

Convert an scRGB image to greyscale. Set depth to 16 to get 16-bit output.

If depth is 16, any extra channels after RGB are multiplied by 256.

See also: vips_LabS2LabQ(), vips_sRGB2scRGB(), vips_rad2float().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_sRGB2scRGB ()

int
vips_sRGB2scRGB (VipsImage *in,
                 VipsImage **out,
                 ...);

Convert an sRGB image to scRGB. The input image can be 8 or 16-bit.

If the input image is tagged as VIPS_INTERPRETATION_RGB16, any extra channels after RGB are divided by 256. Thus, scRGB alpha is always 0 - 255.99.

See also: vips_scRGB2XYZ(), vips_scRGB2sRGB(), vips_rad2float().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_scRGB2XYZ ()

int
vips_scRGB2XYZ (VipsImage *in,
                VipsImage **out,
                ...);

Turn XYZ to scRGB.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_HSV2sRGB ()

int
vips_HSV2sRGB (VipsImage *in,
               VipsImage **out,
               ...);

Convert HSV to sRGB.

HSV is a crude polar coordinate system for RGB images. It is provided for compatibility with other image processing systems. See vips_Lab2LCh() for a much better colour space.

See also: vips_sRGB2HSV().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_sRGB2HSV ()

int
vips_sRGB2HSV (VipsImage *in,
               VipsImage **out,
               ...);

Convert to HSV.

HSV is a crude polar coordinate system for RGB images. It is provided for compatibility with other image processing systems. See vips_Lab2LCh() for a much better colour space.

See also: vips_HSV2sRGB(), vips_Lab2LCh().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_LCh2CMC ()

int
vips_LCh2CMC (VipsImage *in,
              VipsImage **out,
              ...);

Turn LCh to CMC.

The CMC colourspace is described in "Uniform Colour Space Based on the CMC(l:c) Colour-difference Formula", M R Luo and B Rigg, Journal of the Society of Dyers and Colourists, vol 102, 1986. Distances in this colourspace approximate, within 10% or so, differences in the CMC(l:c) colour difference formula.

This operation generates CMC(1:1). For CMC(2:1), halve Lucs and double Cucs.

See also: vips_CMC2LCh().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_CMC2LCh ()

int
vips_CMC2LCh (VipsImage *in,
              VipsImage **out,
              ...);

Turn LCh to CMC.

See also: vips_LCh2CMC().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_XYZ2Yxy ()

int
vips_XYZ2Yxy (VipsImage *in,
              VipsImage **out,
              ...);

Turn XYZ to Yxy.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_Yxy2XYZ ()

int
vips_Yxy2XYZ (VipsImage *in,
              VipsImage **out,
              ...);

Turn XYZ to Yxy.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_LabS2Lab ()

int
vips_LabS2Lab (VipsImage *in,
               VipsImage **out,
               ...);

Convert a LabS three-band signed short image to a three-band float image.

See also: vips_LabS2Lab().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_Lab2LabS ()

int
vips_Lab2LabS (VipsImage *in,
               VipsImage **out,
               ...);

Turn Lab to LabS, signed 16-bit int fixed point.

See also: vips_LabQ2Lab().

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_CMYK2XYZ ()

int
vips_CMYK2XYZ (VipsImage *in,
               VipsImage **out,
               ...);

Turn CMYK to XYZ. If the image has an embedded ICC profile this will be used for the conversion. If there is no embedded profile, a generic fallback profile will be used.

Conversion is to D65 XYZ with relative intent. If you need more control over the process, use vips_icc_import() instead.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_XYZ2CMYK ()

int
vips_XYZ2CMYK (VipsImage *in,
               VipsImage **out,
               ...);

Turn XYZ to CMYK. If the image has an embedded ICC profile this will be used for the conversion. If there is no embedded profile, a generic fallback profile will be used.

Conversion is from D65 XYZ with relative intent. If you need more control over the process, use vips_icc_export() instead.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_profile_load ()

int
vips_profile_load (const char *name,
                   VipsBlob **profile,
                   ...);

Load a named profile.

Profiles are loaded from four sources:

  • The special name "none" means no profile. profile will be NULL in this case.

  • name can be the name of one of the ICC profiles embedded in libvips. These names can be at least "cmyk", "p3" and "srgb".

  • name can be the full path to a file.

  • name can be the name of an ICC profile in the system profile directory for your platform.

Parameters

name

name of profile to load



profile

loaded profile.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_icc_present ()

int
vips_icc_present (void);

VIPS can optionally be built without the ICC library. Use this function to test for its availability.

Returns

non-zero if the ICC library is present.


vips_icc_transform ()

int
vips_icc_transform (VipsImage *in,
                    VipsImage **out,
                    const char *output_profile,
                    ...);

Optional arguments:

  • pcs : VipsPCS, use XYZ or LAB PCS

  • intent : VipsIntent, transform with this intent

  • black_point_compensation : gboolean, enable black point compensation

  • embedded : gboolean, use profile embedded in input image

  • input_profile : gchararray, get the input profile from here

  • depth : gint, depth of output image in bits

Transform an image with a pair of ICC profiles. The input image is moved to profile-connection space with the input profile and then to the output space with the output profile.

If embedded is set, the input profile is taken from the input image metadata, if present. If there is no embedded profile, input_profile is used as a fall-back. You can test for the presence of an embedded profile with vips_image_get_typeof() with VIPS_META_ICC_NAME as an argument. This will return GType 0 if there is no profile.

If embedded is not set, the input profile is taken from input_profile . If input_profile is not supplied, the metadata profile, if any, is used as a fall-back.

If black_point_compensation is set, LCMS black point compensation is enabled.

The output image has the output profile attached to the VIPS_META_ICC_NAME field.

Use vips_icc_import() and vips_icc_export() to do either the first or second half of this operation in isolation.

[method]

Parameters

in

input image



out

output image.

[out]

output_profile

get the output profile from here



...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_icc_import ()

int
vips_icc_import (VipsImage *in,
                 VipsImage **out,
                 ...);

Optional arguments:

  • pcs : VipsPCS, use XYZ or LAB PCS

  • intent : VipsIntent, transform with this intent

  • black_point_compensation : gboolean, enable black point compensation

  • embedded : gboolean, use profile embedded in input image

  • input_profile : gchararray, get the input profile from here

Import an image from device space to D65 LAB with an ICC profile. If pcs is set to VIPS_PCS_XYZ, use CIE XYZ PCS instead.

If embedded is set, the input profile is taken from the input image metadata. If there is no embedded profile, input_profile_filename is used as a fall-back. You can test for the presence of an embedded profile with vips_image_get_typeof() with VIPS_META_ICC_NAME as an argument. This will return GType 0 if there is no profile.

If embedded is not set, the input profile is taken from input_profile . If input_profile is not supplied, the metadata profile, if any, is used as a fall-back.

If black_point_compensation is set, LCMS black point compensation is enabled.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_icc_export ()

int
vips_icc_export (VipsImage *in,
                 VipsImage **out,
                 ...);

Optional arguments:

  • pcs : VipsPCS, use XYZ or LAB PCS

  • intent : VipsIntent, transform with this intent

  • black_point_compensation : gboolean, enable black point compensation

  • output_profile : gchararray, get the output profile from here

  • depth : gint, depth of output image in bits

Export an image from D65 LAB to device space with an ICC profile. If pcs is set to VIPS_PCS_XYZ, use CIE XYZ PCS instead. If output_profile is not set, use the embedded profile, if any. If output_profile is set, export with that and attach it to the output image.

If black_point_compensation is set, LCMS black point compensation is enabled.

[method]

Parameters

in

input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error.


vips_icc_ac2rc ()

int
vips_icc_ac2rc (VipsImage *in,
                VipsImage **out,
                const char *profile_filename);

Transform an image from absolute to relative colorimetry using the MediaWhitePoint stored in the ICC profile.

See also: vips_icc_transform(), vips_icc_import().

[method]

Parameters

in

input image



out

output image.

[out]

profile_filename

use this profile



Returns

0 on success, -1 on error.


vips_icc_is_compatible_profile ()

gboolean
vips_icc_is_compatible_profile (VipsImage *image,
                                const void *data,
                                size_t data_length);

vips_dE76 ()

int
vips_dE76 (VipsImage *left,
           VipsImage *right,
           VipsImage **out,
           ...);

Calculate dE 76.

Parameters

left

first input image



right

second input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_dE00 ()

int
vips_dE00 (VipsImage *left,
           VipsImage *right,
           VipsImage **out,
           ...);

Calculate dE 00.

Parameters

left

first input image



right

second input image



out

output image



...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_dECMC ()

int
vips_dECMC (VipsImage *left,
            VipsImage *right,
            VipsImage **out,
            ...);

Calculate dE CMC. The input images are transformed to CMC colour space and the euclidean distance between corresponding pixels calculated.

To calculate a colour difference with values for (l:c) other than (1:1), transform the two source images to CMC yourself, scale the channels appropriately, and call this function.

See also: vips_colourspace()

Parameters

left

first input image



right

second input image



out

output image.

[out]

...

NULL-terminated list of optional named arguments



Returns

0 on success, -1 on error


vips_col_Lab2XYZ ()

void
vips_col_Lab2XYZ (float L,
                  float a,
                  float b,
                  float *X,
                  float *Y,
                  float *Z);

Calculate XYZ from Lab, D65.

See also: vips_Lab2XYZ().

Parameters

L

Input CIE Lab value



a

Input CIE Lab value



b

Input CIE Lab value



X

Return CIE XYZ colour.

[out]

Y

Return CIE XYZ colour.

[out]

Z

Return CIE XYZ colour.

[out]

vips_col_XYZ2Lab ()

void
vips_col_XYZ2Lab (float X,
                  float Y,
                  float Z,
                  float *L,
                  float *a,
                  float *b);

Calculate XYZ from Lab, D65.

See also: vips_XYZ2Lab().

Parameters

X

Input CIE XYZ colour



Y

Input CIE XYZ colour



Z

Input CIE XYZ colour



L

Return CIE Lab value.

[out]

a

Return CIE Lab value.

[out]

b

Return CIE Lab value.

[out]

vips_col_ab2h ()

double
vips_col_ab2h (double a,
               double b);

Parameters

a

CIE a



b

CIE b



Returns

Hue (degrees)


vips_col_ab2Ch ()

void
vips_col_ab2Ch (float a,
                float b,
                float *C,
                float *h);

vips_col_Ch2ab ()

void
vips_col_Ch2ab (float C,
                float h,
                float *a,
                float *b);

Calculate ab from Ch, h in degrees.

Parameters

C

Chroma



h

Hue angle (degrees)



a

return CIE a* value



b

return CIE b* value



vips_col_L2Lcmc ()

float
vips_col_L2Lcmc (float L);

Calculate Lcmc from L.

Parameters

L

CIE L*



Returns

Lcmc


vips_col_C2Ccmc ()

float
vips_col_C2Ccmc (float C);

Calculate Ccmc from C.

Parameters

C

Chroma



Returns

Ccmc.


vips_col_Ch2hcmc ()

float
vips_col_Ch2hcmc (float C,
                  float h);

Calculate hcmc from C and h.

Parameters

C

Chroma



h

Hue (degrees)



Returns

hcmc.


vips_col_make_tables_CMC ()

void
vips_col_make_tables_CMC (void);

Make the lookup tables for cmc.


vips_col_Lcmc2L ()

float
vips_col_Lcmc2L (float Lcmc);

Calculate L from Lcmc using a table. Call vips_col_make_tables_CMC() at least once before using this function.

Parameters

Lcmc

L cmc



Returns

L*


vips_col_Ccmc2C ()

float
vips_col_Ccmc2C (float Ccmc);

Calculate C from Ccmc using a table. Call vips_col_make_tables_CMC() at least once before using this function.

Parameters

Ccmc

Ccmc



Returns

C.


vips_col_Chcmc2h ()

float
vips_col_Chcmc2h (float C,
                  float hcmc);

Calculate h from C and hcmc, using a table. Call vips_col_make_tables_CMC() at least once before using this function.

Parameters

C

Chroma



hcmc

Hue cmc (degrees)



Returns

h.


vips_col_sRGB2scRGB_8 ()

int
vips_col_sRGB2scRGB_8 (int r,
                       int g,
                       int b,
                       float *R,
                       float *G,
                       float *B);

vips_col_sRGB2scRGB_16 ()

int
vips_col_sRGB2scRGB_16 (int r,
                        int g,
                        int b,
                        float *R,
                        float *G,
                        float *B);

vips_col_sRGB2scRGB_8_noclip ()

int
vips_col_sRGB2scRGB_8_noclip (int r,
                              int g,
                              int b,
                              float *R,
                              float *G,
                              float *B);

vips_col_sRGB2scRGB_16_noclip ()

int
vips_col_sRGB2scRGB_16_noclip (int r,
                               int g,
                               int b,
                               float *R,
                               float *G,
                               float *B);

vips_col_scRGB2XYZ ()

int
vips_col_scRGB2XYZ (float R,
                    float G,
                    float B,
                    float *X,
                    float *Y,
                    float *Z);

Turn scRGB into XYZ.

See also: vips_scRGB2XYZ().

Parameters

R

Input scRGB value



G

Input scRGB value



B

Input scRGB value



X

Return XYZ colour.

[out]

Y

Return XYZ colour.

[out]

Z

Return XYZ colour.

[out]

vips_col_XYZ2scRGB ()

int
vips_col_XYZ2scRGB (float X,
                    float Y,
                    float Z,
                    float *R,
                    float *G,
                    float *B);

Turn XYZ into scRGB.

See also: vips_XYZ2scRGB().

Parameters

X

Input XYZ value



Y

Input XYZ value



Z

Input XYZ value



R

Return scRGB colour.

[out]

G

Return scRGB colour.

[out]

B

Return scRGB colour.

[out]

vips_col_scRGB2sRGB_8 ()

int
vips_col_scRGB2sRGB_8 (float R,
                       float G,
                       float B,
                       int *r,
                       int *g,
                       int *b,
                       int *og);

vips_col_scRGB2sRGB_16 ()

int
vips_col_scRGB2sRGB_16 (float R,
                        float G,
                        float B,
                        int *r,
                        int *g,
                        int *b,
                        int *og);

vips_col_scRGB2BW_16 ()

int
vips_col_scRGB2BW_16 (float R,
                      float G,
                      float B,
                      int *g,
                      int *og);

vips_col_scRGB2BW_8 ()

int
vips_col_scRGB2BW_8 (float R,
                     float G,
                     float B,
                     int *g,
                     int *og);

vips_pythagoras ()

float
vips_pythagoras (float L1,
                 float a1,
                 float b1,
                 float L2,
                 float a2,
                 float b2);

Pythagorean distance between two points in colour space. Lab/XYZ/CMC etc.

Parameters

L1

Input coordinate 1



a1

Input coordinate 1



b1

Input coordinate 1



L2

Input coordinate 2



a2

Input coordinate 2



b2

Input coordinate 2



vips_col_dE00 ()

float
vips_col_dE00 (float L1,
               float a1,
               float b1,
               float L2,
               float a2,
               float b2);

CIEDE2000, from:

Luo, Cui, Rigg, "The Development of the CIE 2000 Colour-Difference Formula: CIEDE2000", COLOR research and application, pp 340

Parameters

L1

Input coordinate 1



a1

Input coordinate 1



b1

Input coordinate 1



L2

Input coordinate 2



a2

Input coordinate 2



b2

Input coordinate 2



Returns

CIE dE2000 colour difference.

Types and Values

VIPS_D93_X0

#define VIPS_D93_X0 (89.7400)

Areas under curves for D93, 2 degree observer.


VIPS_D93_Y0

#define VIPS_D93_Y0 (100.0)

VIPS_D93_Z0

#define VIPS_D93_Z0 (130.7700)

VIPS_D75_X0

#define VIPS_D75_X0 (94.9682)

Areas under curves for D75, 2 degree observer.


VIPS_D75_Y0

#define VIPS_D75_Y0 (100.0)

VIPS_D75_Z0

#define VIPS_D75_Z0 (122.5710)

VIPS_D65_X0

#define VIPS_D65_X0 (95.0470)

Areas under curves for D65, 2 degree observer.


VIPS_D65_Y0

#define VIPS_D65_Y0 (100.0)

VIPS_D65_Z0

#define VIPS_D65_Z0 (108.8827)

VIPS_D55_X0

#define VIPS_D55_X0 (95.6831)

Areas under curves for D55, 2 degree observer.


VIPS_D55_Y0

#define VIPS_D55_Y0 (100.0)

VIPS_D55_Z0

#define VIPS_D55_Z0 (92.0871)

VIPS_D50_X0

#define VIPS_D50_X0 (96.4250)

Areas under curves for D50, 2 degree observer.


VIPS_D50_Y0

#define VIPS_D50_Y0 (100.0)

VIPS_D50_Z0

#define VIPS_D50_Z0 (82.4680)

VIPS_A_X0

#define VIPS_A_X0 (109.8503)

Areas under curves for illuminant A (2856K), 2 degree observer.


VIPS_A_Y0

#define VIPS_A_Y0 (100.0)

VIPS_A_Z0

#define VIPS_A_Z0 (35.5849)

VIPS_B_X0

#define VIPS_B_X0 (99.0720)

Areas under curves for illuminant B (4874K), 2 degree observer.


VIPS_B_Y0

#define VIPS_B_Y0 (100.0)

VIPS_B_Z0

#define VIPS_B_Z0 (85.2230)

VIPS_C_X0

#define VIPS_C_X0 (98.0700)

Areas under curves for illuminant C (6774K), 2 degree observer.


VIPS_C_Y0

#define VIPS_C_Y0 (100.0)

VIPS_C_Z0

#define VIPS_C_Z0 (118.2300)

VIPS_E_X0

#define VIPS_E_X0 (100.0)

Areas under curves for equal energy illuminant E.


VIPS_E_Y0

#define VIPS_E_Y0 (100.0)

VIPS_E_Z0

#define VIPS_E_Z0 (100.0)

VIPS_D3250_X0

#define VIPS_D3250_X0 (105.6590)

Areas under curves for black body at 3250K, 2 degree observer.


VIPS_D3250_Y0

#define VIPS_D3250_Y0 (100.0)

VIPS_D3250_Z0

#define VIPS_D3250_Z0 (45.8501)

enum VipsIntent

The rendering intent. VIPS_INTENT_ABSOLUTE is best for scientific work, VIPS_INTENT_RELATIVE is usually best for accurate communication with other imaging libraries.

Members

VIPS_INTENT_PERCEPTUAL

perceptual rendering intent



VIPS_INTENT_RELATIVE

relative colorimetric rendering intent



VIPS_INTENT_SATURATION

saturation rendering intent



VIPS_INTENT_ABSOLUTE

absolute colorimetric rendering intent



VIPS_INTENT_LAST



enum VipsPCS

Pick a Profile Connection Space for vips_icc_import() and vips_icc_export(). LAB is usually best, XYZ can be more convenient in some cases.

Members

VIPS_PCS_LAB

use CIELAB D65 as the Profile Connection Space



VIPS_PCS_XYZ

use XYZ as the Profile Connection Space



VIPS_PCS_LAST



See Also

arithmetic
